Work Style：Auto Central
Material：20CrMnTi
Hardness：HRC58°- HRC62°
Auto-Central accuracy:  0.015
ØRepeat positioning accuracy: 0.015
Parallel accuracy: 100：0.005
Vertical accuracy: 50：0.02
Upmovement: Less than 0.01

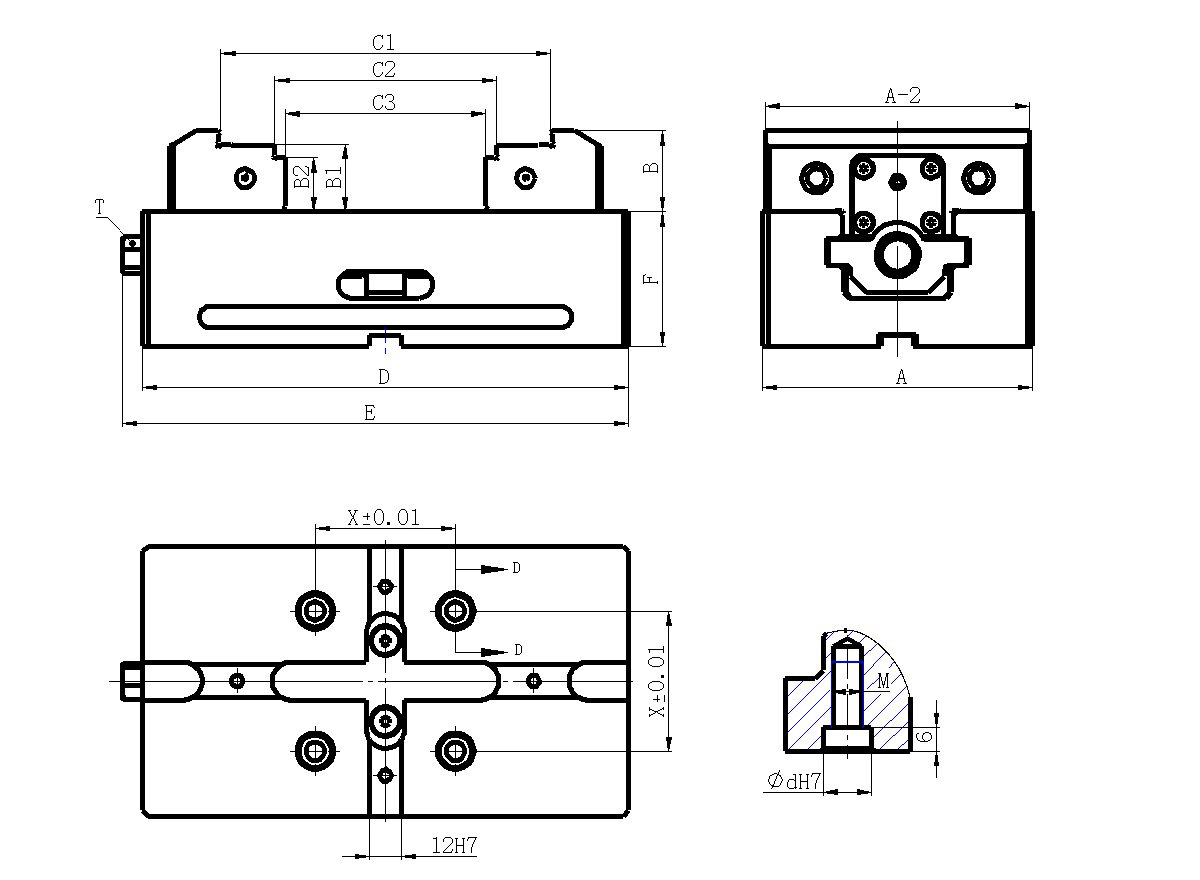

Order No
A
B/B1/B2
C1/C2/C3
D
E
F
X
d
T
Clamping Force(KN)
Weight(Kg)
HT106A-75X85
75
25/20/16
85/55/47
100
108
45
52
12
12
20
2.83
HT106A-75X125
25/20/16
125/95/87
140
148
45
52
12
12
20
3.57
HT106A-100X125
100
30/25/20
125/85/77
140
148
50
52
12
12
26
5.99
HT106A-100X165
30/25/20
165/125/117
180
188
50
52
12
12
26
7.15
HT106A-125X165
125
30/25/20
165/119/111
180
187
60
96
16
14
35
10.59
HT106A-125X215
30/25/20
215/169/161
230
237
60
96
16
14
35
12.84
HT106A-150X215
150
35/30/25
215/165/157
230
237
65
96
16
14
40
19.15
HT106A-150X265
35/30/25
265/215/207
280
287
65
96
16
14
40
22.1
HT106A-150X365
35/30/25
365/315/307
380
387
65
96
16
14
40
27.85








5-Axis Vises

      HOLDART offers a full line of 5-axis vise options to give you maximum clamping force when working with 5-axis machinery. Our 5-axis workholding vises are designed to allow for obstruction-free machining on five sides of a workpiece. They have the benefit of a quick, single clamp setup and allow for continuous, high-speed cutting of pockets and 3-dimensional or sculpted surfaces.
     Whatever your requirements, we’re sure to have the best 5-axis vises for your application.
