Work Style：Double WorkSpaces
Material：20CrMnTi
Hardness：HRC58°- HRC62°
Processing Parts difference: 0-1mm
Parallel accuracy: 100：0.005
Vertical accuracy: 50：0.02
Upmovement: Less than 0.01

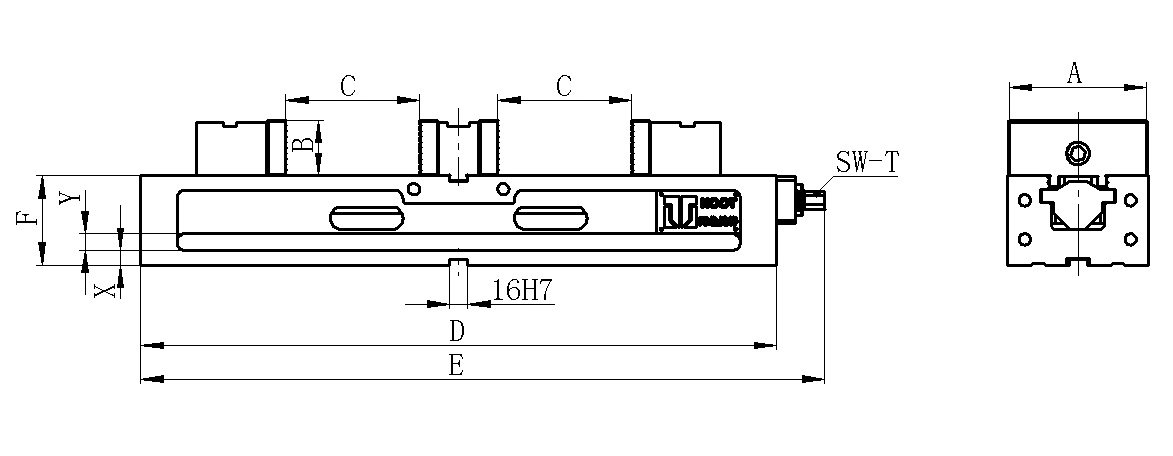

Order No
A
B
C
D
E
F
X
Y
S
Clamping Force(KN)
Weight(Kg)
HT104-100X75
100
40
75
370
411
70
11
13
14
12
21.2
HT104-100X125
100
40
125
470
511
70
11
13
14
12
24.7
HT104-125X60
125
50
60
370
411
80
13
15
14
16
37.4
HT104-125X110
125
50
110
470
511
80
13
15
14
16
42.6
HT104-150x60
150
60
60
420
476
90
15
15
19
21
49.8
HT104-150X110
150
60
110
520
576
90
15
15
19
21
58
HT104-150X160
150
60
160
620
676
90
15
15
19
21
65.2
HT104-175X110
175
65
110
520
576
100
15
17
19
27
81.8
HT104-175X160
175
65
160
620
676
100
15
17
19
27
91








Double Station Vises

     HOLDART Double Station Vise has a revolutionary design that transforms a single vise into three different vise sizes in minute. Quickly convert between a double-station vise with 60mm of part capacity on each side or a large single-station vise that can hold parts as large as maxium 400mm wide.
